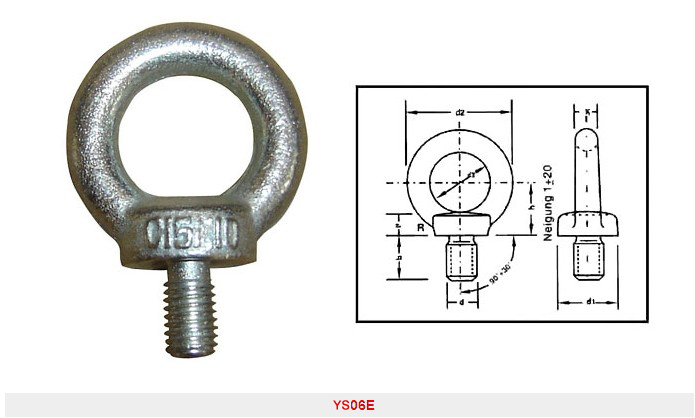

DIN580 Eye Screw
|
Product Code |
Size (mm) |
W．L．L (ton.) |
Dimensions(mm) |
Weight Each (kg／pc) |
||||||
|
d1 |
d2 |
b |
e |
h |
k |
|||||
|
YS06E01 |
M6 |
0.05 |
17 |
28 |
16 |
13 |
6 |
17 |
6 |
0.050 |
|
YS06E02 |
M8 |
0.095 |
20 |
36 |
20 |
15 |
6 |
18 |
8 |
0.060 |
|
YS06E03 |
M10 |
0.17 |
25 |
45 |
25 |
18 |
8 |
22 |
10 |
0.110 |
|
YS06E04 |
M12 |
0.24 |
30 |
54 |
30 |
22 |
10 |
26 |
12 |
0.180 |
|
YS06E05 |
M14 |
0.34 |
35 |
63 |
35 |
28 |
12 |
30 |
14 |
0.285 |
|
YS06E06 |
M16 |
0.5 |
35 |
63 |
35 |
28 |
12 |
30 |
14 |
0.280 |
|
YS06E07 |
M20 |
0.83 |
40 |
72 |
40 |
30 |
12 |
35 |
16 |
0.450 |
|
YS06E08 |
M22 |
1.05 |
45 |
81 |
45 |
35 |
14 |
40 |
18 |
0.670 |
|
YS06E09 |
M24 |
1.27 |
50 |
90 |
50 |
38 |
16 |
45 |
20 |
0.780 |
|
YS06E10 |
M27 |
1.65 |
50 |
90 |
50 |
38 |
18 |
45 |
20 |
0.880 |
|
YS06E11 |
M30 |
2.6 |
65 |
108 |
60 |
45 |
18 |
55 |
24 |
1.660 |
|
YS06E12 |
M33 |
3.2 |
65 |
108 |
60 |
45 |
22 |
55 |
24 |
1.720 |
|
YS06E13 |
M36 |
3.7 |
75 |
126 |
70 |
55 |
22 |
65 |
28 |
2.650 |
|
YS06E14 |
M39 |
4.3 |
75 |
126 |
70 |
55 |
26 |
65 |
28 |
2.800 |
|
YS06E15 |
M42 |
5 |
85 |
144 |
80 |
65 |
30 |
75 |
32 |
4.030 |
|
YS06E16 |
M45 |
5.5 |
85 |
144 |
80 |
65 |
30 |
75 |
32 |
4.250 |
|
YS06E07 |
M48 |
6.1 |
100 |
166 |
90 |
70 |
35 |
85 |
38 |
6.380 |
|
YS06E18 |
M52 |
7.3 |
100 |
166 |
90 |
70 |
35 |
85 |
38 |
6.600 |
|
YS06E19 |
M65 |
8.3 |
110 |
184 |
100 |
80 |
38 |
95 |
42 |
8.800 |
|
YS06E20 |
M64 |
11 |
120 |
206 |
110 |
90 |
42 |
100 |
48 |
12.400 |
